Monitoring Nginx

Step 1: Follow the steps for Installing Applicare SingleAgent

Nginx Configuration

Step 2: Stop the Nginx server.

Step 3: Navigate to the directory <Nginx_Installed_Directory>/conf and open the nginx.conf file for editing. On Linux, the default path is (/etc/nginx).

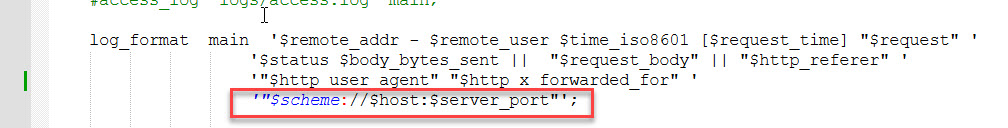

Step 4: Comment out the current format and insert the following log_format.

log_format  main  '$remote_addr - $remote_user $time_iso8601 [$request_time] "$request" '
                    '$status $body_bytes_sent "$http_referer" '
                    '"$http_user_agent" "$http_x_forwarded_for"';

Step 7: Insert the following lines within the server module

location /nginx-status {
stub_status on;
allow 127.0.0.1;
deny all;
}

Step 8: Start the Nginx server.

Integrating Nginx to Applicare

Step 9: Once the agent is started, It will be automatically registered with the Applicare controller. Log in to the Applicare console and go to the Overview menu.

Step 10: Select the newly added agent and click the Edit button.

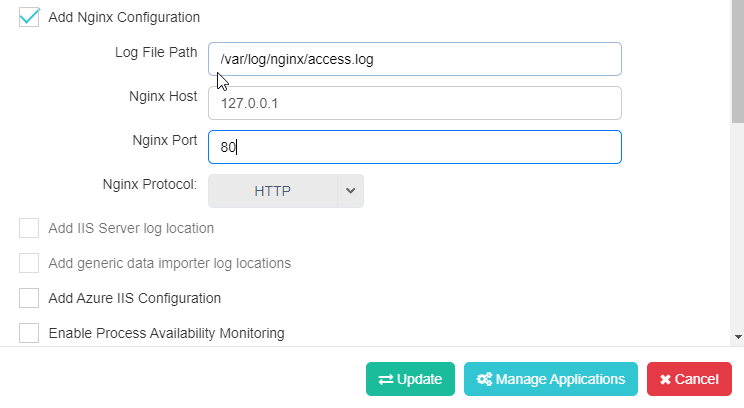

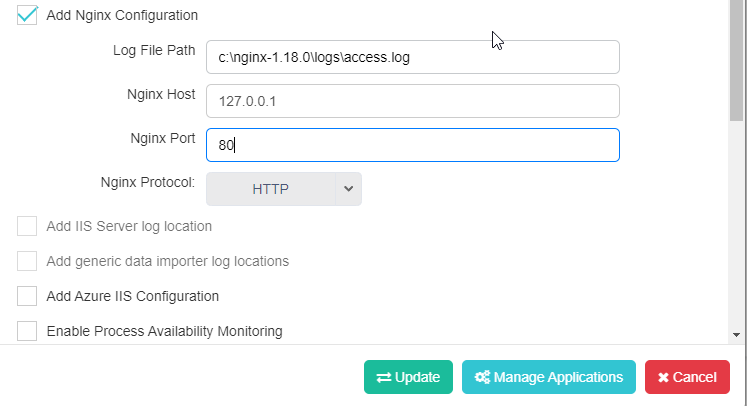

Step 11: Enable the "Add Nginx Configuration" checkbox and  add the  below value.

1. Log file path

2. Nginx Host

3. Nginx Port

4. Nginx Protocol

Click the update button to save.
