Monitoring Nginx

Step 1: Follow the steps for installing Applicare SingleAgent

Configuration in Nginx

Step 2: Stop the Nginx server.

Step 3: Go to the path <Nginx_Installed_Directory>/conf and edit the nginx.conf file. In Linux the default path is (/etc/nginx).

Step 4: Comment the existing format and add the below log_format.

log_format  main  '$remote_addr - $remote_user $time_iso8601 [$request_time] "$request" '
                    '$status $body_bytes_sent "$http_referer" '
                    '"$http_user_agent" "$http_x_forwarded_for"';

Step 7: Add the below lines inside the server module

location /nginx-status {
stub_status on;
allow all;
}

Step 8: Start the Nginx server.

Adding Nginx to Applicare

Step 9: Once the agent is started, Agent will be automatically added to the Applicare controller. Login into the Applicare console and go to the Overview menu.

Step 10: Select the newly added agent and click the Edit button.

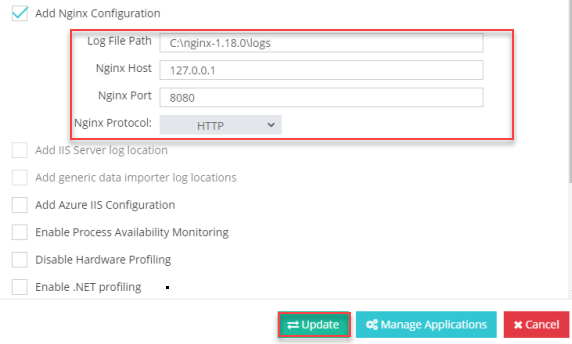

Step 11: Enable the "Add Nginx Configuration" checkbox and  add the  below value.

1. Log file path

2. Nginx Host

3. Nginx Port

4. Nginx Protocol

Click the update button to save.

Windows

Linux
