WebSphere Monitoring

Arcturus Support
  • Updated
Follow
  1. Install Applicare SingleAgent in the machine that WebSphere is running in.

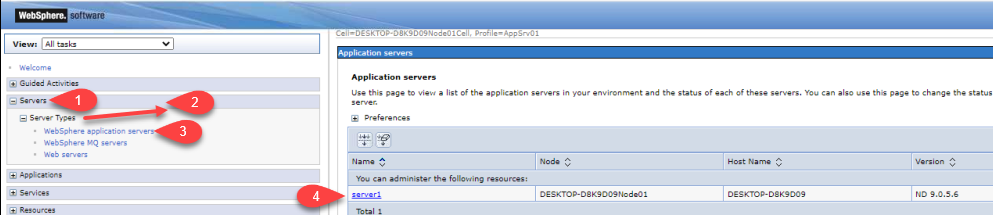

  2. Log in to the Websphere console and navigate servers> server Types > Websphere application servers, and then select the server.

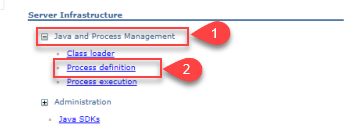

  1. Click on Java and Process Management> Process definition under the Server Infrastructure section.


  1. In the additional properties section, click on Java Virtual Machine.


  1. Save the value in the boot classpath as shown below
<ApplicareSingleagent_homepath>\applicare-aspects.jar
  • <ApplicareSingleagent_homepath> - refers to the directory where the Applicare SingleAgent zip file extracted.


  1. Save the value as shown below the Generic JVM arguments.
-noverify -javaagent:<ApplicareSingleagent_homepath>\applicare-aspects.jar=verbosity=0,logfile=false
  • Note: <ApplicareSingleagent_homepath> - Applicare SingleAgent zip file extracted directory.


  1. Next, add the following custom properties by clicking the Custom Properties
    link under Additional Properties heading on the same page.


Name Value Description
Arcturus_home <ApplicareSingleagent_homepath> Absolute path to your ApplicareSingleagent_homepath directory
java.awt.headless True
java.library.path <ApplicareSingleagent_homepath>/bin The full path to your ApplicareSingleagent_homepath directory
profile.name <Profile Name>

The profile name you used when configuring

the profile in Applicare console
server.name <Server Name> Name of your WebSphere server



  1. Restart the WebSphere server to apply the changes.

For Other Docs - Click here

Monitoring with Applicare
