UEM Injection through the Applicare Reverse Proxy Server

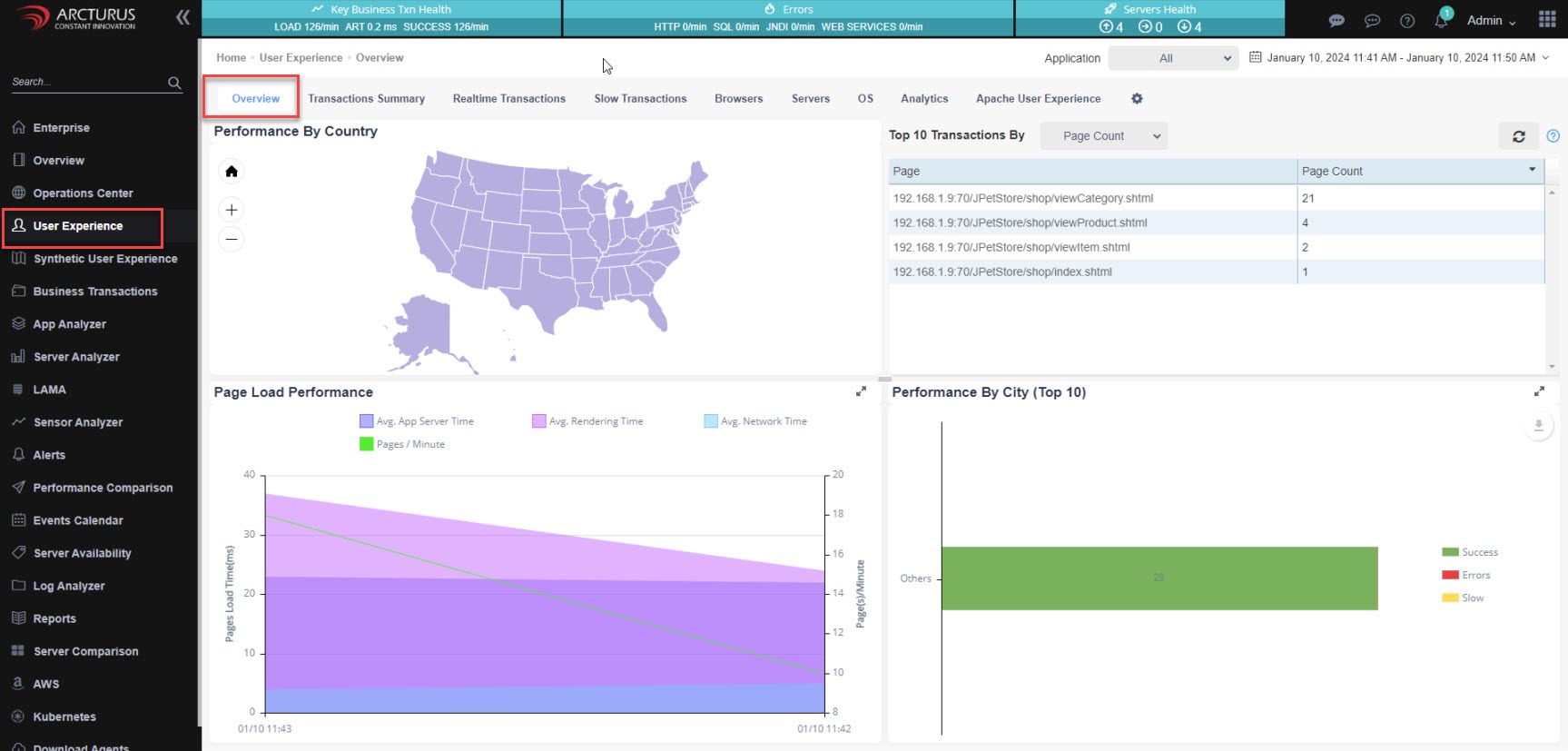

User Experience: An Overview

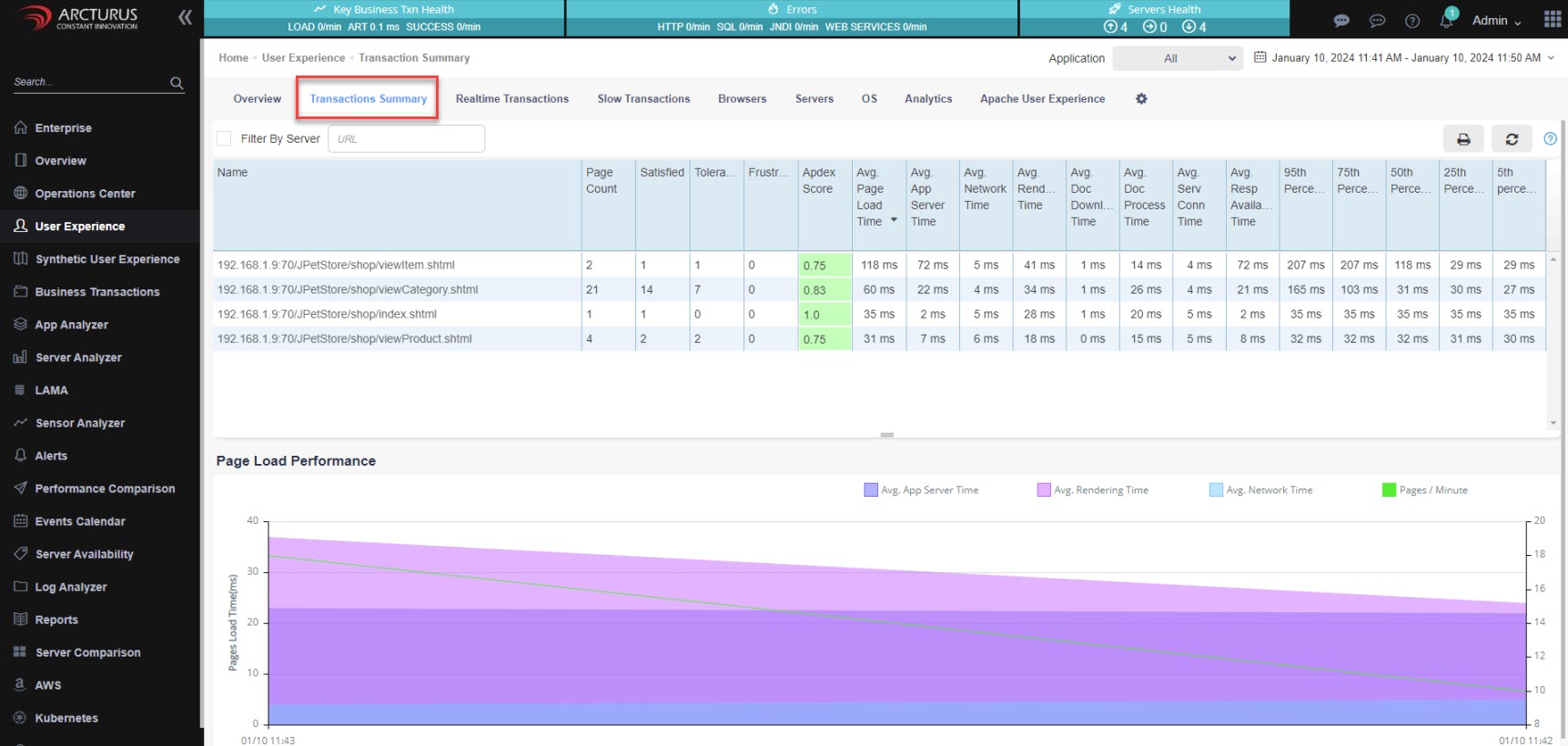

User Experience: Transaction Overview

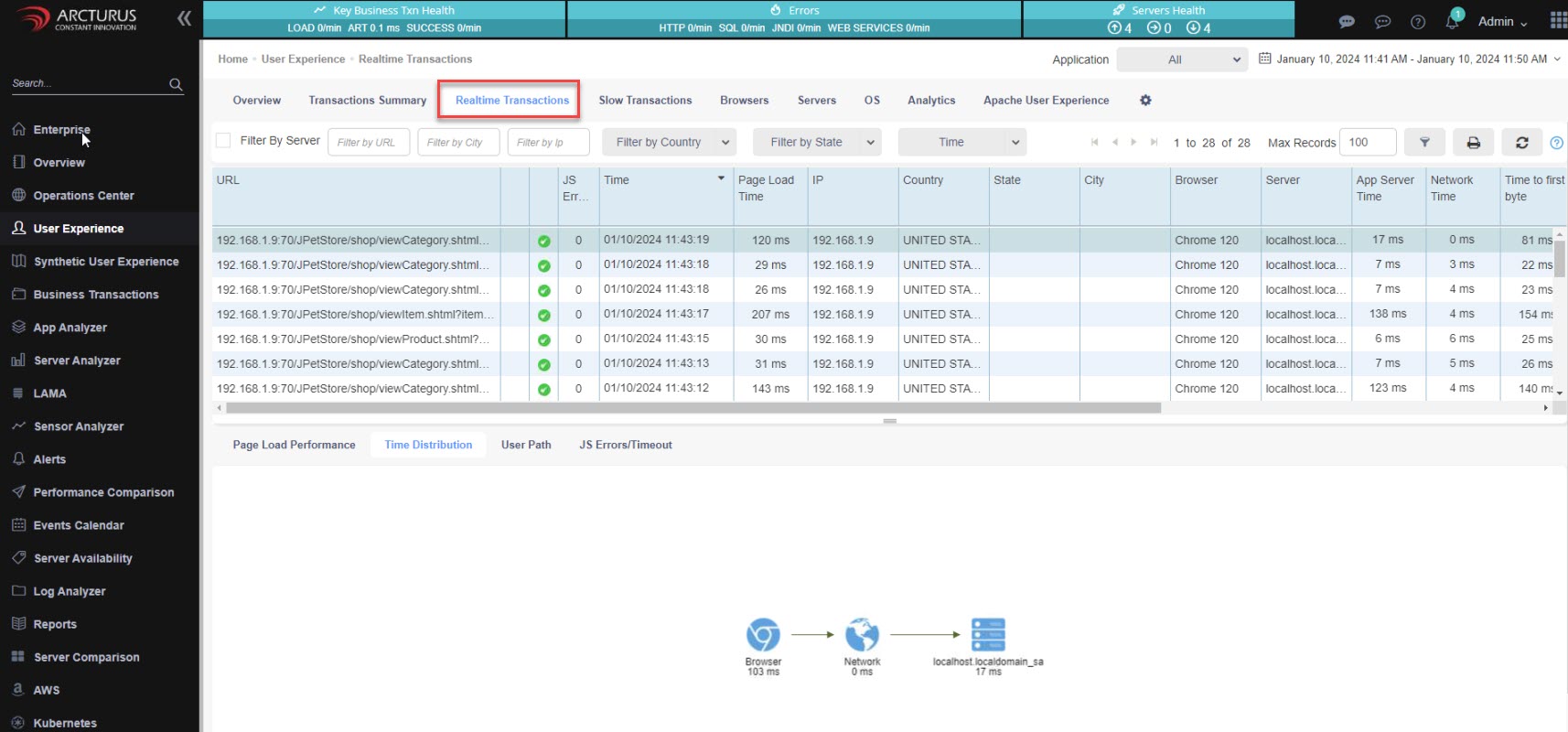

User Experience: Real-Time Transactions

Steps to configure the Applicare reverse proxy server

Step 1: Download the Applicare Reverse Proxy Server from this link download here.

Step 2: Navigate to the path <applicare_reverseProxy>/conf and modify the reverseproxy.conf file.

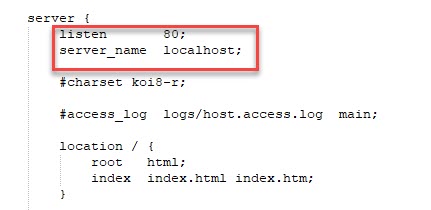

Step 3: Change the listen port and server_name value inside the server { block.

listen -> Applicare reverse proxy server PORT

server_name -> Applicare reverse proxy server IP

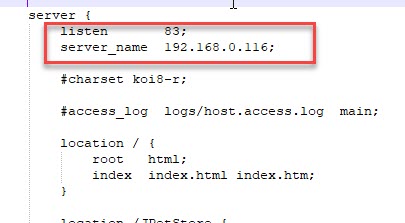

e.g.

Step 4: Add the upstream configuration before the server { block

Syntax:

upstream UPSTREAM_REDIRECTOR_NAME {
    ip_hash;
    server REDIRECTOR_APPLICATION_IP:REDIRECTOR_APPLICATION_PORT;
}

Example:

upstream petstoreredirect {
    ip_hash;
    server 192.168.0.165:8881;
}

Step 5: Add the new location block after the location / { block

Syntax:

location /REDIRECTOR_APPLICATION_BASE_URL {
    proxy_pass REDIRECTOR_APPLICATION_PROTCOL://UPSTREAM_REDIRECTOR_NAME;
    proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    sub_filter '</body>' '</body>new_string';
    sub_filter_once off;
}

Step 6: Replace the REDIRECTOR_APPLICATION_BASE_URL with the application base url.

REDIRECTOR_APPLICATION_BASE_URL -> JPetStore

location /JPetStore {

Step 7: Replace the REDIRECTOR_APPLICATION_PROTCOL and UPSTREAM_REDIRECTOR_NAME.

REDIRECTOR_APPLICATION_PROTCOL -> http

UPSTREAM_REDIRECTOR_NAME -> petstoreredirect

proxy_pass http://petstoreredirect;

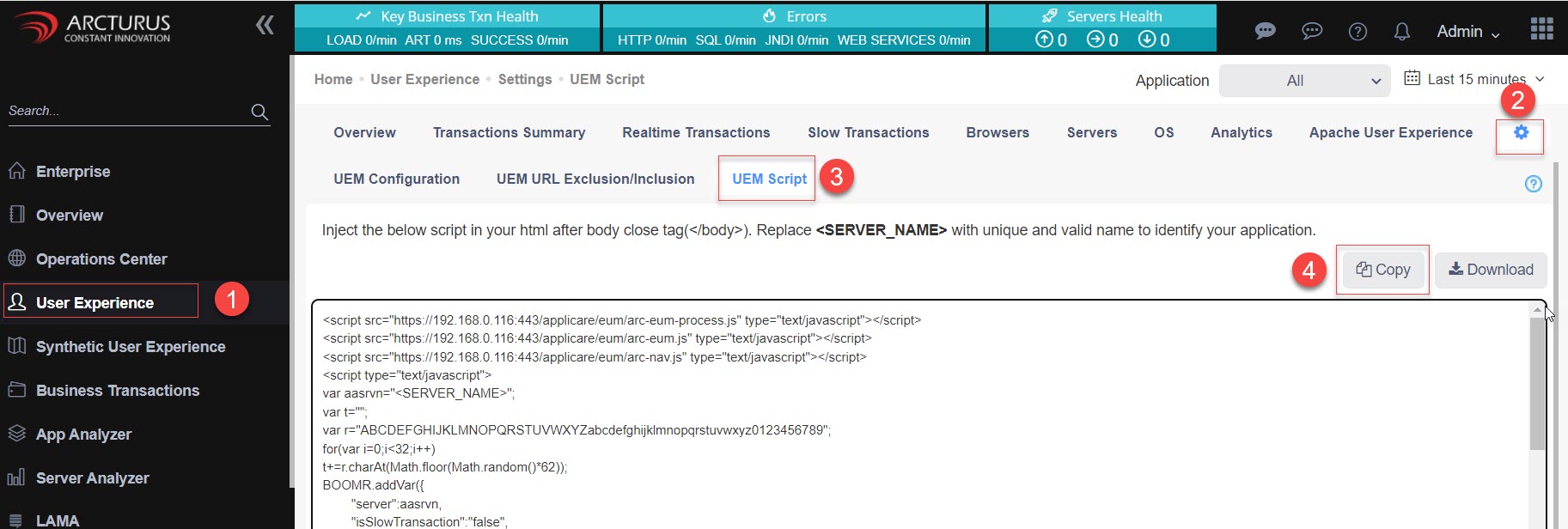

Step 8: Login to Applicare console and go to User Experience -> Settings -> UEM Script screen and copy the script and replace it in the place of new_string keyword in the sub_filter in the Nginx sever conf file.

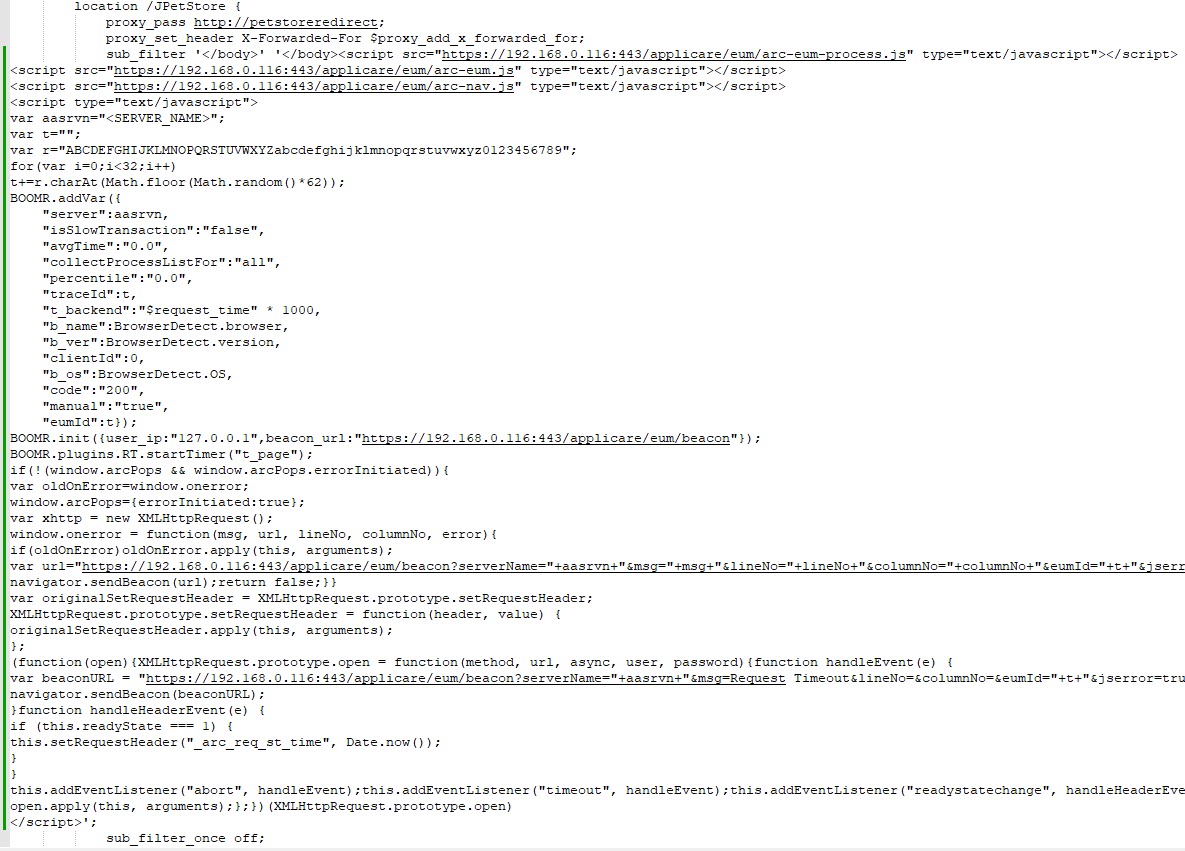

The conf file will appear as shown below.

Step 9: Substitute the following values.

a. Replace <SERVER_NAME> with a unique identifier for your application.

b. Set the value from "true" to "false".

c. In the "t_backend" section, update the value from "0" to "$request_time" * 1000

Step 10: Navigate to the <applicare_reverseProxy> home directory and run the following command to start.

startreverseproxy.bat

Step 11: Access the application through the Reverse Proxy server.

Syntax:

<REVERSE_PROXY_PROTOCOL>://<REVERSE_PROXY_IP>:<REVERSE_PROXY_PORT>/REDIRECTOR_APPLICATION_BASE_URL

e.g.

http://192.168.0.113:83/JPetStore

Step 12: Navigate to the <applicare_reverseProxy> home directory and run the following command to stop the Reverse Proxy Server.

stopreverseproxy.bat
